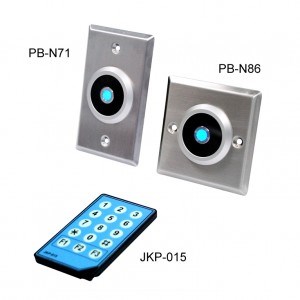

PB-N71/N86 Infrared Push Button (Proximity Button & Exit button)

Model: PB-N71/N86
Type: Locks & Push Button (Exit button)

分享到

Video

Features

  • The Contactless, feature means sterile and hygienic.
  • Under normal situation with blue LED. When it is active, LED turns to Green. It's easy to indicate the operation status.
  • Relay trigger time is adjustable from 1 to 9 seconds
  • Proximity distance is adjustable from 10 to 20 cm.
  • Offer one touch point to operate when infrared is abnormal.
  • Indoor only.
  • Remote control door open with an infrared keypad. (Option Device)

Specifications

Dimension PB-N71 116 (L) X 71 (W) X 37 (H) mm
  PB-N86 86 (L) X 86 (W) X 37 (H) mm
Contact Rating 0.5A 125VAC / 2A 30VDC / 0.3A 110VDC
Contact Type 2 form C (DPDT)
Relay Life Mechanical:100,000,000 times / Electrical:500,000 times
Operation Temperature -20°C ~ 55°C
LED indicate Blue: normal / Green:active
Relay trigger time 1 to 9 second (adjustable)
Operation Distance From 10 ~ 20 cm (adjustable)
Operation Voltage DC9V ~ DC12V



Ordering Information
